TMI is pleased to offer the Revit casework families included in the Downloads section below. These families have been engineered with design options and flexibility built into each cabinet offering, while keeping the file size minimal.
Preset Family Dimensions
Hinge Style Selection
Pull Style Options
Shelf Quantities
Lock Options
Filler Inclusion
Filler Dimensions

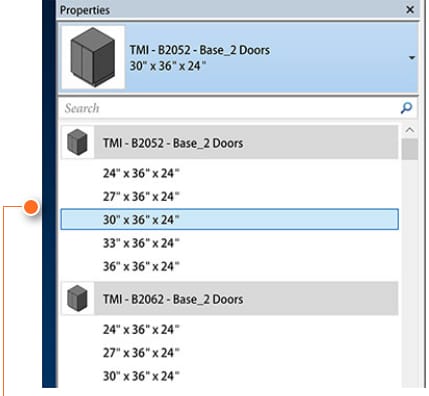

Preset Family Dimensions
Easily select from preset family dimensions:
Select from the Width x Height x Depth dimensions available.
NOTE: Further dimensional adjustments to each family can be made by going into the Type Properties interface.

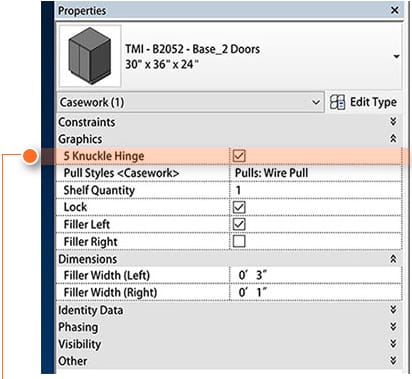

Hinge Style Selection
The Hinge Style can be adjusted from 5-Knuckle to Concealed:
Check the box for 5 Knuckle Hinges and Reveal Overlay Design.
Uncheck the box for Concealed (European Style) Hinges and Flush Overlay Design.
NOTE: The door/drawer overlay dimensions will be automatically updated based on selection. 5 Knuckle hinges are visible in 3D and rendered views.

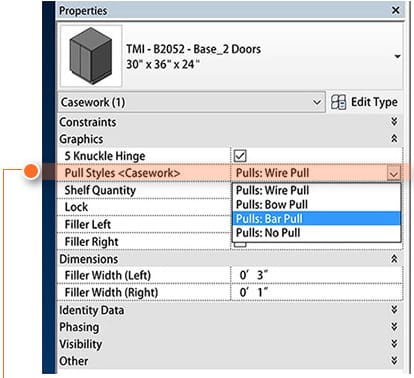

Pull Style Options
The Pull Style includes four unique selection options:
Select the Pull Styles drop-down box to view design options including:
Wire Pull
Bow Pull
Bar Pull
No Pull
NOTE: The selected Pull Style will appear in 3D and rendered views.

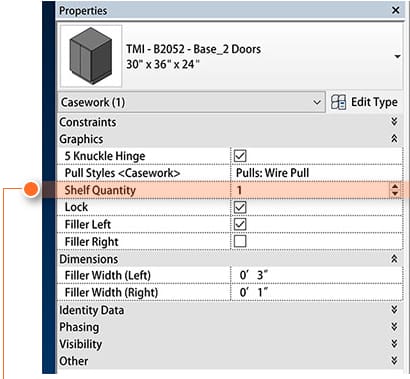

Shelf Quantities
Adjust the number of shelves in each cabinet independently:
Use the spin button counter to adjust shelf quantities (0, 1, 2) in each unit.
NOTE: In order to control file sizes, TMI Revit Families do not include physical shelves behind doors. Shelf indicators are included in elevation and section views. Open cabinets will include shelves that are visible in 3D and rendered views.
Lock Options
Locks are easily indicated for each cabinet:
Check the box to indicate locked cabinets.
Uncheck the box to turn lock indicators off.
NOTE: Locks will appear in elevation, 3D and rendered views.

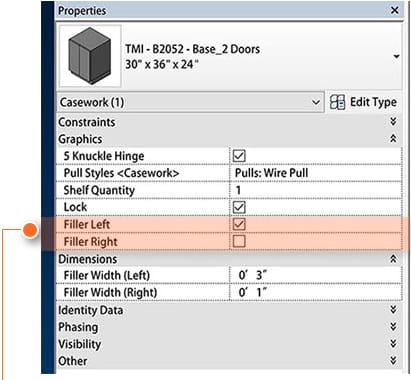

Filler Inclusion
Left and Right Fillers are included with each cabinet family:
Check the box to turn on the left and right fillers independently.
Uncheck the box to turn off the left or right fillers.
NOTE: Filler dimensions are adjusted independently in the Dimension Properties interface.

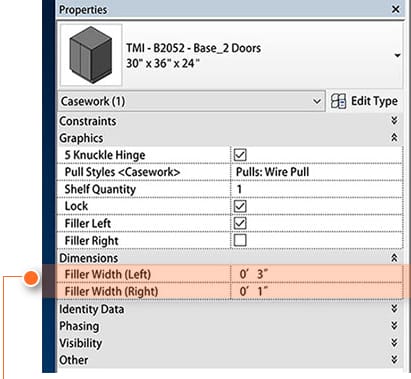

Filler Dimensions
Left and Right Filler Dimensions are adjusted independently:
Enter the filler dimensions as needed.
NOTE: TMI recommends minimum 1-1/2″ fillers when the cabinet is next to a wall. At corner conditions, a minimum 3″ filler is recommended so that adjacent pull hardware does not interfere with door/drawer operation.
Downloads
Download cabinet families individually as needed, or use the Full TMI Revit Offering download link to capture the entire Revit offering.
Through a dialogue with architects and extensive product research, we have established specification options which provide optimum durability at the most affordable cost, along with the AutoCAD and Revit details to keep your project documents coordinated with your specifications.
The recommended specifications and details available below contain the results of nearly 50 years of industry experience and product development.
