Design Options
TMI is pleased to offer the Revit music families included in the Downloads section below. These families have been engineered with design options and flexibility built into each cabinet offering, while keeping the file size minimal.
TMI is pleased to offer the Revit music families included in the Downloads section below. These families have been engineered with design options and flexibility built into each cabinet offering, while keeping the file size minimal.

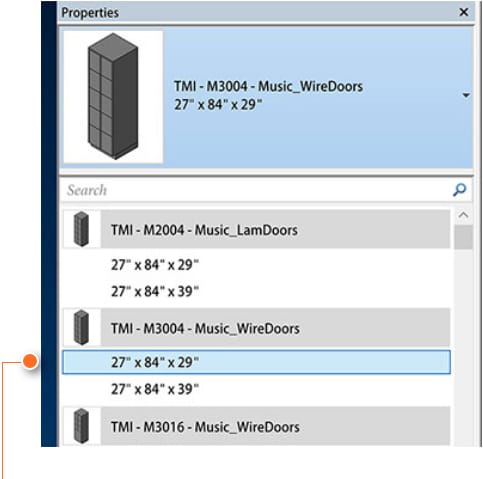

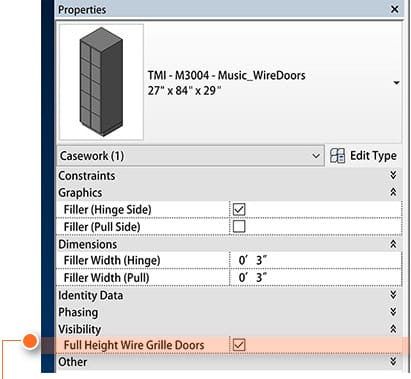

Easily select from preset family dimensions:
Select from the Width x Height x Depth dimensions available.
NOTE: Further dimensional adjustments to each family can be made by
going into the Type Properties interface.

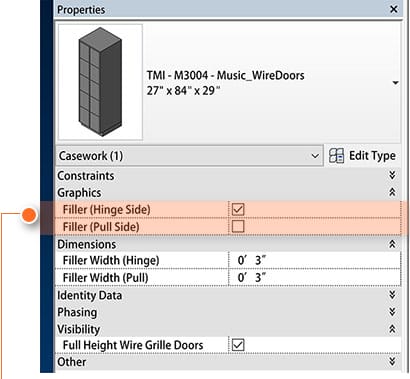

Left and Right Fillers are included with each music cabinet family:
Check the box to turn on the left and right fillers independently.
Uncheck the box to turn off the left or right fillers.
NOTE: Filler dimensions are adjusted independently in the Dimension
Properties interface.

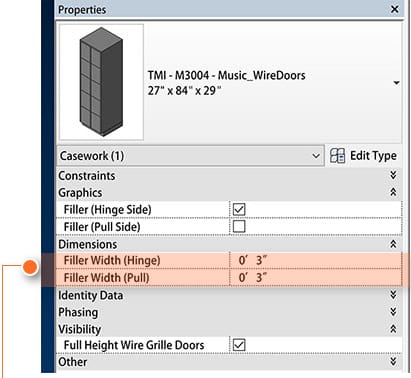

Left and Right Filler Dimensions are adjusted independently:
Enter the filler dimensions as needed.
NOTE: TMI recommends minimum 1-1/2″ fillers when the cabinet is next to a wall. At corner conditions, a minimum 3″ filler is recommended so that adjacent pull hardware does not interfere with door operation.
Toggle from individual compartment doors to a single full height door design:
Check the box to turn on the full height door design.
Uncheck the box to show individual compartment doors.

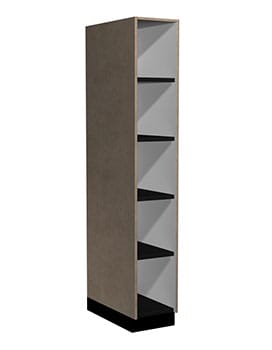

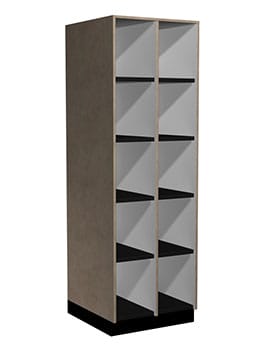

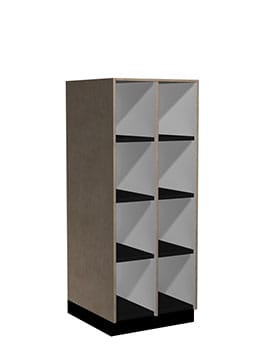

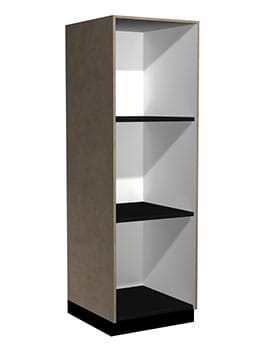

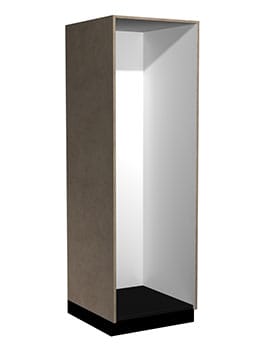

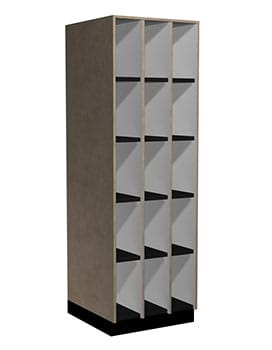

NOTE: This option will not appear with the open compartment cabinet
designs, which are the M1000 Series cabinet numbers.
The TMI Revit Music families are categorized by the door style options, including: Wire Grille Doors, Solid Laminate Doors, and Open Compartments.
Download cabinet families individually as needed, or use the Full Style Offering download link to capture the entire style sets.

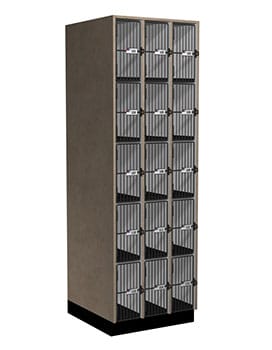

STYLE: Individual Wire Grille Doors
FAMILY OPTION: 1 Full Height Wire Grille Door
COMPARTMENTS: 15 Equal (8″ W x 14-1/2″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Clarinet, Flute, Oboe, Piccolo
39″ DEEP: Clarinet, Flute, Oboe, Piccolo

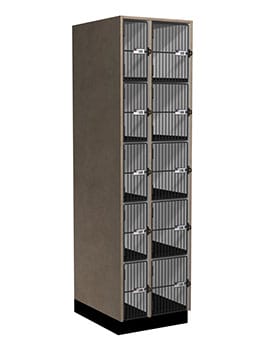

STYLE: Individual Wire Grille Doors
FAMILY OPTION: 1 Full Height Wire Grille Door
COMPARTMENTS: 10 Equal (12-3/8″ W x 14-1/2″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Alto Saxophone, Cornet, Trumpet
39″ DEEP: Alto Clarinet, Bassoon, Bass Clarinet, Tenor Saxophone, Trombone, Violin, Viola
STYLE: Individual Wire Grille Doors
FAMILY OPTION: 1 Full Height Wire Grille Door
COMPARTMENTS: 5 Equal (8″ W x 14-1/2″ H) and 5 Equal (12-3/8″ W x 14-1/2″ H)
WIDTH: 23″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Clarinet, Flute, Oboe, Piccolo, Alto Sax, Cornet, Trumpet
39″ DEEP: Clarinet, Flute, Oboe, Piccolo, Alto Clarinet, Bassoon, Bass Clarinet, Tenor Sax, Trombone, Violin, Viola

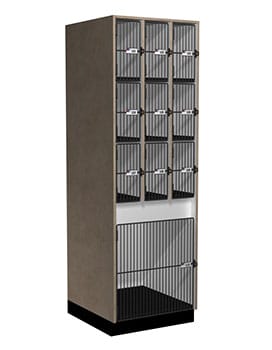

STYLE: Individual Wire Grille Doors
FAMILY OPTION: 1 Full Height Wire Grille Door
COMPARTMENTS: 9 Equal (8″ W x 14-1/2″ H) and 1 Bottom (25-3/8″ W x 25″ H)
WIDTH: 23″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Clarinet, Flute, Oboe, Piccolo, Alto Sax, Cornet, Trumpet
39″ DEEP: Clarinet, Flute, Oboe, Piccolo, Alto Clarinet, Bassoon, Bass Clarinet, Tenor Sax, Trombone, Violin, Viola
STYLE: Individual Wire Grille Doors
FAMILY OPTION: 1 Full Height Wire Grille Door
COMPARTMENTS: 6 Equal (12-3/8″ W x 14-1/2″ H) and 1 Bottom (25-3/8″ W x 25″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Alto Sax, Cornet, Trumpet, Alto Horn, French Horn, Snare Drum
39″ DEEP: Alto Clarinet, Bassoon, Bass Clarinet, Tenor Sax, Trombone, Violin, Viola, Baritone, Euphonium

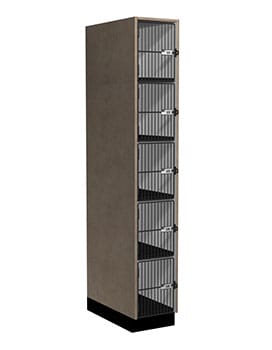

STYLE: Individual Wire Grille Doors
FAMILY OPTION: 1 Full Height Wire Grille Door
COMPARTMENTS: 5 Equal (12-3/8″ W x 14-1/2″ H)
WIDTH: 14″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Alto Sax, Cornet, Trumpet
39″ DEEP: Alto Clarinet, Bassoon, Bass Clarinet, Tenor Sax, Trombone, Violin, Viola

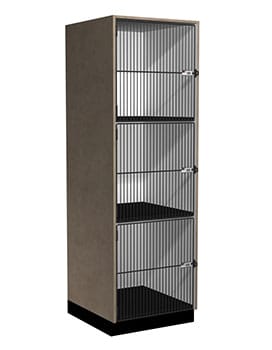

STYLE: Individual Wire Grille Doors
FAMILY OPTION: 1 Full Height Wire Grille Door
COMPARTMENTS: 3 Equal (25-3/8″ W x 25″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: French Horn, Alto Horn, Snare Drum
39″ DEEP: Baritone, Euphonium, Mellophone
STYLE: Individual Wire Grille Doors
FAMILY OPTION: 2 Full Height Wire Grille Door
COMPARTMENTS: 3 Equal (46-1/2″ W x 25″ H)
WIDTH: 48″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Baritone Sax, Bass Clarinet, Bassoon, Field Drums, Snare Drum
39″ DEEP: Baritone Sax, Bass Clarinet, Bassoon, Field Drums, Snare Drum

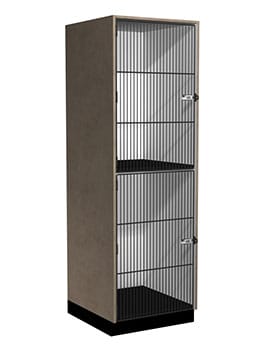

STYLE: Individual Wire Grille Doors
FAMILY OPTION: 1 Full Height Wire Grille Door
COMPARTMENTS: 2 Equal (25-3/8″ W x 38-1/2″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Bass/Field/Parade Drums, Snare Drum
39″ DEEP: Bass/Field/Parade Drums, Snare Drum
STYLE: Individual Wire Grille Doors
FAMILY OPTION: 2 Full Height Wire Grille Door
COMPARTMENTS: 2 Equal (46-1/2″ W x 38-1/2″ H)
WIDTH: 48″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Bass/Field/Parade Drums, Snare Drum, Tri-Toms, Quads, Tuba, Sousaphone
39″ DEEP: Bass/Field/Parade Drums, Snare Drum, Tri-Toms, Quads, Tuba, Sousaphone
STYLE: Individual Wire Grille Doors
COMPARTMENTS: Full Height (25-3/8″ W x 78-7/8″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: String Bass, Contra Bass Clarinet, Bass Drums
39″ DEEP: String Bass, Contra Bass Clarinet, Bass Drums

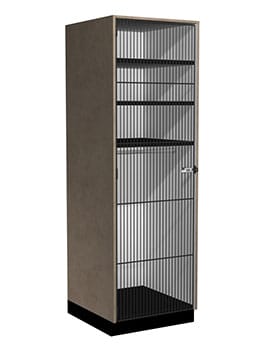

STYLE: Individual Wire Grille Doors
COMPARTMENTS: 1 Top (25-3/8″ W x 10″ H) and 1 Bottom (25-3/8″ W x 68″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Cello, Guitar, Snare Drum, Field Drums
39″ DEEP: Cello, Guitar, Snare Drum, Field Drums
STYLE: Individual Wire Grille Doors
FAMILY OPTION: 1 Full Height Wire Grille Door
COMPARTMENTS: 6 Equal (8″ W x 38-1/2″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Acoustic Guitar
39″ DEEP: Acoustic Guitar
STYLE: Individual Wire Grille Doors
FAMILY OPTION: 1 Full Height Wire Grille Door
COMPARTMENTS:6 Equal (8″ W x 38-1/2″ H) and 3 Equal (8″ W x 46-1/2″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Clarinet, Flute, Oboe, Piccolo, Acoustic Guitar
39″ DEEP: Clarinet, Flute, Oboe, Piccolo, Acoustic Guitar
STYLE: 2 Full Height Wire Grille Doors
COMPARTMENTS: 2 Equal (58-1/2″ W x 38-1/2″ H) – Open at the bottom for large wheel-in instrument storage
WIDTH: 60″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Clarinet, Flute, Oboe, Piccolo, Acoustic Guitar
39″ DEEP: Clarinet, Flute, Oboe, Piccolo, Acoustic Guitar

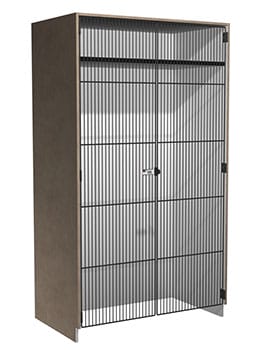

STYLE: 2 Full Height Wire Grille Doors
COMPARTMENTS: 1 Top (58-1/2″ W x 10″ H) and 1 Bottom (58-1/2″ W x 73″ H) – Open at the bottom for large wheel-in instrument storage
WIDTH: 60″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Timpani, Chimes, Xylophone, Marimbas, Small Vibes
39″ DEEP: Timpani, Chimes, Xylophone, Marimbas, Small Vibes

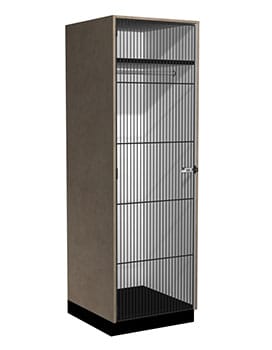

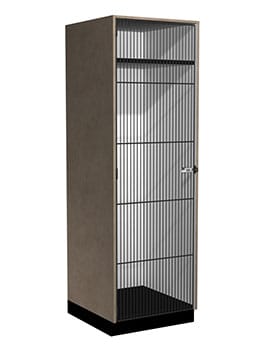

STYLE: 1 Full Height Wire Grille Door and 1 Closet Rod Included
COMPARTMENTS: 1 Top (25-3/8″ W x 10″ H) and 1 Bottom (25-3/8″ W x 68″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 23″ | 29″
23″ DEEP: Uniforms, Robes, Uniform Accessories
29″ DEEP: Uniforms, Robes, Uniform Accessories

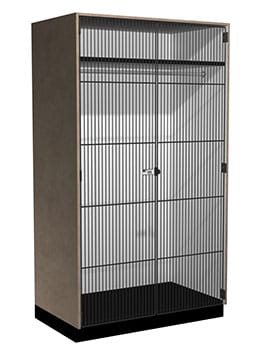

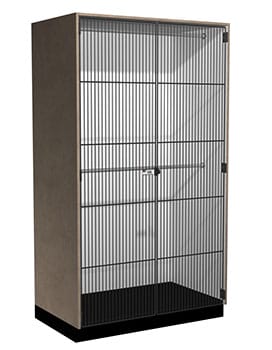

STYLE: 2 Full Height Wire Grille Doors and 1 Closet Rod Included
COMPARTMENTS: 1 Top (46-1/2″ W x 10″ H) and 1 Bottom (46-1/2″ W x 68″ H)
WIDTH: 48″
HEIGHT: 84-1/2″
DEPTH: 23″ | 29″
23″ DEEP: Uniforms, Robes, Uniform Accessories
29″ DEEP: Uniforms, Robes, Uniform Accessories

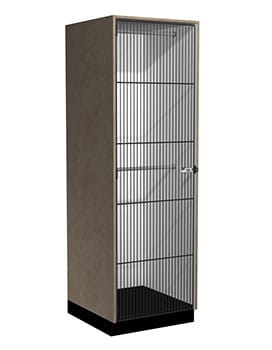

STYLE: 1 Full Height Wire Grille Door and 2 Closet Rods Included
COMPARTMENTS: 2 Equal (25-3/8″ W x 38-1/2″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 23″ | 29″
23″ DEEP: Uniforms, Robes, Uniform Accessories
29″ DEEP: Uniforms, Robes, Uniform Accessories
STYLE: 2 Full Height Wire Grille Doors and 2 Closet Rods Included
COMPARTMENTS: 2 Equal (46-1/2″ W x 38-1/2″ H)
WIDTH: 48″
HEIGHT: 84-1/2″
DEPTH: 23″ | 29″
23″ DEEP: Uniforms, Robes, Uniform Accessories
29″ DEEP: Uniforms, Robes, Uniform Accessories
STYLE: 1 Full Height Wire Grille Door and 1 Closet Rod Included
COMPARTMENTS: 3 Equal (25-3/8″ W x 10″ H) and 1 Bottom (25-3/8″ W x 76″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 23″ | 29″
23″ DEEP: Uniforms, Robes, Uniform Accessories
29″ DEEP: Uniforms, Robes, Uniform Accessories
STYLE: 2 Full Height Wire Grille Doors and 1 Closet Rod Included
COMPARTMENTS: 3 Equal (46-1/2″ W x 10″ H) and 1 Bottom (46-1/2″ W x 76″ H)
WIDTH: 48″
HEIGHT: 84-1/2″
DEPTH: 23″ | 29″
23″ DEEP: Uniforms, Robes, Uniform Accessories
29″ DEEP: Uniforms, Robes, Uniform Accessories
STYLE: Individual Wire Grille Doors
FAMILY OPTION: 1 Full Height Wire Grille Door
COMPARTMENTS: 12 Equal (8″ W x 14-1/2″ H)
WIDTH: 27″
HEIGHT: 68-5/8″
DEPTH: 29″ | 39″
29″ DEEP: Clarinet, Flute, Oboe, Piccolo
39″ DEEP: Clarinet, Flute, Oboe, Piccolo

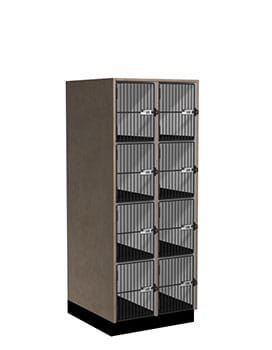

STYLE: Individual Wire Grille Doors
FAMILY OPTION: 1 Full Height Wire Grille Door
COMPARTMENTS: 8 Equal (12-3/8″ W x 14-1/2″ H)
WIDTH: 27″
HEIGHT: 68-5/8″
DEPTH: 29″ | 39″
29″ DEEP: Alto Sax, Cornet, Trumpet
39″ DEEP: Alto Clarinet, Bassoon, Bass Clarinet, Tenor Sax, Trombone, Violin, Viola
STYLE: Individual Wire Grille Doors
FAMILY OPTION: 1 Full Height Wire Grille Door

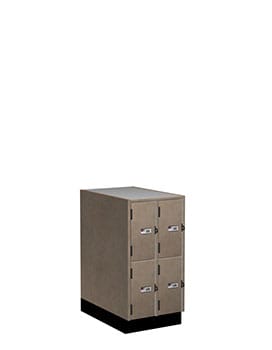

COMPARTMENTS: 4 Equal (8″ W x 14-1/2″ H)
WIDTH: 18-1/4″
HEIGHT: 36-5/8″
DEPTH: 29″ | 39″
29″ DEEP: Clarinet, Flute, Oboe, Piccolo
39″ DEEP: Clarinet, Flute, Oboe, Piccolo
STYLE: Individual Wire Grille Doors
FAMILY OPTION: 1 Full Height Wire Grille Door
COMPARTMENTS: 6 Equal (8″ W x 14-1/2″ H)
WIDTH: 27″
HEIGHT: 36-5/8″
DEPTH: 29″ | 39″
29″ DEEP: Clarinet, Flute, Oboe, Piccolo
39″ DEEP: Clarinet, Flute, Oboe, Piccolo
STYLE: Individual Wire Grille Doors
FAMILY OPTION: 1 Full Height Wire Grille Door
COMPARTMENTS: 4 Equal (12-3/8″ W x 14-1/2″ H)
WIDTH: 27″
HEIGHT: 36-5/8″
DEPTH: 29″ | 39″
29″ DEEP: Alto Sax, Cornet, Trumpet
39″ DEEP: Alto Clarinet, Bassoon, Bass Clarinet, Tenor Sax, Trombone, Violin, Viola

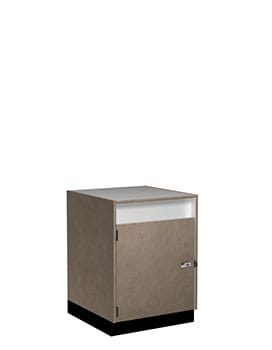

STYLE: Individual Wire Grille Doors
COMPARTMENTS: 1 Bottom (25-3/8″ W x 25″ H)
WIDTH: 27″
HEIGHT: 36-5/8″
DEPTH: 29″ | 39″
29″ DEEP: Alto Horn, French Horn, Snare Drum
39″ DEEP: Baritone, Euphonium, Mellophone

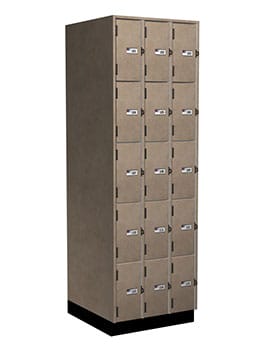

STYLE: Individual Laminated Doors
FAMILY OPTION: 1 Full Height Laminated Door
COMPARTMENTS: 15 Equal (8″ W x 14-1/2″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Clarinet, Flute, Oboe, Piccolo
39″ DEEP: Clarinet, Flute, Oboe, Piccolo
STYLE: Individual Laminated Doors
FAMILY OPTION: 1 Full Height Laminated Door
COMPARTMENTS: 10 Equal (12-3/8″ W x 14-1/2″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Alto Saxophone, Cornet, Trumpet
39″ DEEP: Alto Clarinet, Bassoon, Bass Clarinet, Tenor Saxophone, Trombone, Violin, Viola
STYLE: Individual Laminated Doors
FAMILY OPTION: 1 Full Height Laminated Door
COMPARTMENTS: 5 Equal (8″ W x 14-1/2″ H) and 5 Equal (12-3/8″ W x 14-1/2″ H)
WIDTH: 23″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Clarinet, Flute, Oboe, Piccolo, Alto Sax, Cornet, Trumpet
39″ DEEP: Clarinet, Flute, Oboe, Piccolo, Alto Clarinet, Bassoon, Bass Clarinet, Tenor Sax, Trombone, Violin, Viola

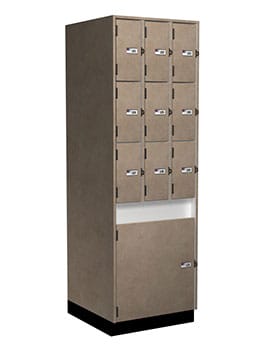

STYLE: Individual Laminated Doors
FAMILY OPTION: 1 Full Height Laminated Door
COMPARTMENTS: 9 Equal (8″ W x 14-1/2″ H) and 1 Bottom (25-3/8″ W x 25″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Clarinet, Flute, Oboe, Piccolo, Alto Horn, French Horn, Snare Drum
39″ DEEP: Clarinet, Flute, Oboe, Piccolo, Baritone, Euphonium, Mellophone
STYLE: Individual Laminated Doors
FAMILY OPTION: 1 Full Height Laminated Door
COMPARTMENTS: 6 Equal (12-3/8″ W x 14-1/2″ H) and 1 Bottom (25-3/8″ W x 25″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Alto Sax, Cornet, Trumpet, Alto Horn, French Horn, Snare Drum
39″ DEEP: Alto Clarinet, Bassoon, Bass Clarinet, Tenor Sax, Trombone, Violin, Viola, Baritone, Euphonium

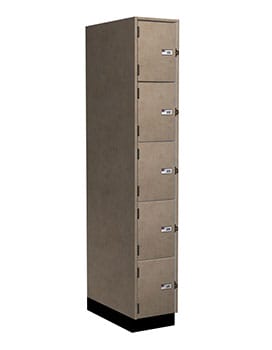

STYLE: Individual Laminated Doors
FAMILY OPTION: 1 Full Height Laminated Door
COMPARTMENTS: 5 Equal (12-3/8″ W x 14-1/2″ H)
WIDTH: 14″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Alto Sax, Cornet, Trumpet
39″ DEEP: Alto Clarinet, Bassoon, Bass Clarinet, Tenor Sax, Trombone, Violin, Viola
STYLE: Individual Laminated Doors
FAMILY OPTION: 1 Full Height Laminated Door
COMPARTMENTS: 3 Equal (25-3/8″ W x 25″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: French Horn, Alto Horn, Snare Drum
39″ DEEP: Baritone, Euphonium, Mellophone
STYLE: Individual Laminated Doors
FAMILY OPTION: 2 Full Height Laminated Doors
COMPARTMENTS: 3 Equal (46-1/2″ W x 25″ H)
WIDTH: 48″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Baritone Sax, Bass Clarinet, Bassoon, Field Drums, Snare Drum
39″ DEEP: Baritone Sax, Bass Clarinet, Bassoon, Field Drums, Snare Drum

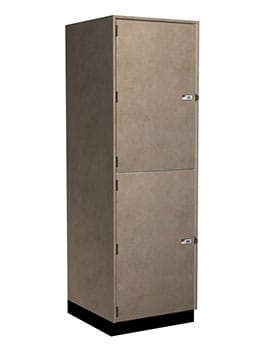

STYLE: Individual Laminated Doors
FAMILY OPTION: 1 Full Height Laminated Door
COMPARTMENTS: 2 Equal (25-3/8″ W x 38-1/2″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Bass/Field/Parade Drums, Snare Drum
39″ DEEP: Bass/Field/Parade Drums, Snare Drum
STYLE: Individual Laminated Doors
FAMILY OPTION: 2 Full Height Laminated Doors
COMPARTMENTS: 2 Equal (46-1/2″ W x 38-1/2″ H)
WIDTH: 48″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Bass/Field/Parade Drums, Snare Drum, Tri-Toms, Quads, Tuba, Sousaphone
39″ DEEP: Bass/Field/Parade Drums, Snare Drum, Tri-Toms, Quads, Tuba, Sousaphone
STYLE: Individual Laminated Doors
COMPARTMENTS: Full Height (25-3/8″ W x 78-7/8″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: String Bass, Contra Bass Clarinet, Bass Drums
39″ DEEP: String Bass, Contra Bass Clarinet, Bass Drums
STYLE: Individual Laminated Doors
COMPARTMENTS: 1 Top (25-3/8″ W x 10″ H) and 1 Bottom (25-3/8″ W x 68″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Cello, Guitar, Snare Drum, Field Drums
39″ DEEP: Cello, Guitar, Snare Drum, Field Drums
STYLE: Individual Laminated Doors
FAMILY OPTION: 1 Full Height Laminated Door
COMPARTMENTS: 6 Equal (8″ W x 38-1/2″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Acoustic Guitar
39″ DEEP: Acoustic Guitar
STYLE: Individual Laminated Doors
FAMILY OPTION: 1 Full Height Laminated Door
COMPARTMENTS: 6 Equal (8″ W x 38-1/2″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Acoustic Guitar
39″ DEEP: Acoustic Guitar
STYLE: 2 Full Height Laminated Doors
COMPARTMENTS: 2 Equal (58-1/2″ W x 38-1/2″ H) – Open at the bottom for large wheel-in instrument storage
WIDTH: 60″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Timpani, Chimes, Xylophone, Marimbas, Small Vibes
39″ DEEP: Timpani, Chimes, Xylophone, Marimbas, Small Vibes
STYLE: 2 Full Height Laminated Doors
COMPARTMENTS: 1 Top (58-1/2″ W x 10″ H) and 1 Bottom (58-1/2″ W x 73″ H) – Open at the bottom for large wheel-in instrument storage
WIDTH: 60″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Timpani, Chimes, Xylophone, Marimbas, Small Vibes
39″ DEEP: Timpani, Chimes, Xylophone, Marimbas, Small Vibes
STYLE: 1 Full Height Laminated Door and 1 Closet Rod Included
COMPARTMENTS: 1 Top (25-3/8″ W x 10″ H) and 1 Bottom (25-3/8″ W x 68″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 23″ | 29″
23″ DEEP: Uniforms, Robes, Uniform Accessories
29″ DEEP: Uniforms, Robes, Uniform Accessories

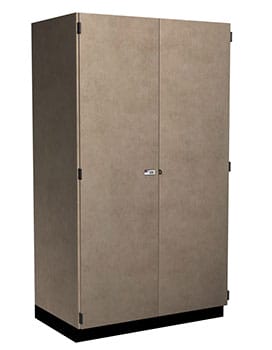

STYLE: 2 Full Height Laminated Doors and 1 Closet Rod Included
COMPARTMENTS: 1 Top (46-1/2″ W x 10″ H) and 1 Bottom (46-1/2″ W x 68″ H)
WIDTH: 48″
HEIGHT: 84-1/2″
DEPTH: 23″ | 29″
23″ DEEP: Uniforms, Robes, Uniform Accessories
29″ DEEP: Uniforms, Robes, Uniform Accessories
STYLE: 1 Full Height Laminated Door and 2 Closet Rods Included
COMPARTMENTS: 2 Equal (25-3/8″ W x 38-1/2″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 23″ | 29″
23″ DEEP: Uniforms, Robes, Uniform Accessories
29″ DEEP: Uniforms, Robes, Uniform Accessories
STYLE: 2 Full Height Laminated Doors and 2 Closet Rods Included
COMPARTMENTS: 2 Equal (46-1/2″ W x 38-1/2″ H)
WIDTH: 48″
HEIGHT: 84-1/2″
DEPTH: 23″ | 29″
23″ DEEP: Uniforms, Robes, Uniform Accessories
29″ DEEP: Uniforms, Robes, Uniform Accessories
STYLE: 1 Full Height Laminated Door and 1 Closet Rod Included
COMPARTMENTS: 3 Equal (25-3/8″ W x 10″ H) and 1 Bottom (25-3/8″ W x 76″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 23″ | 29″
23″ DEEP: Uniforms, Robes, Uniform Accessories
29″ DEEP: Uniforms, Robes, Uniform Accessories
STYLE: 2 Full Height Laminated Doors and 1 Closet Rod Included
COMPARTMENTS: 3 Equal (46-1/2″ W x 10″ H) and 1 Bottom (46-1/2″ W x 76″ H)
WIDTH: 48″
HEIGHT: 84-1/2″
DEPTH: 23″ | 29″
23″ DEEP: Uniforms, Robes, Uniform Accessories
29″ DEEP: Uniforms, Robes, Uniform Accessories

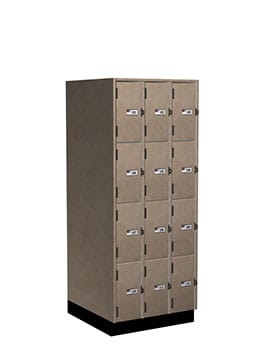

STYLE: Individual Laminated Doors
FAMILY OPTION: 1 Full Height Laminated Door
COMPARTMENTS: 12 Equal (8″ W x 14-1/2″ H)
WIDTH: 27″
HEIGHT: 68-5/8″
DEPTH: 29″ | 39″
29″ DEEP: Clarinet, Flute, Oboe, Piccolo
39″ DEEP: Clarinet, Flute, Oboe, Piccolo
STYLE: Individual Laminated Doors
FAMILY OPTION: 1 Full Height Laminated Door
COMPARTMENTS: 8 Equal (12-3/8″ W x 14-1/2″ H)
WIDTH: 27″
HEIGHT: 68-5/8″
DEPTH: 29″ | 39″
29″ DEEP: Alto Sax, Cornet, Trumpet
39″ DEEP: Alto Clarinet, Bassoon, Bass Clarinet, Tenor Sax, Trombone, Violin, Viola

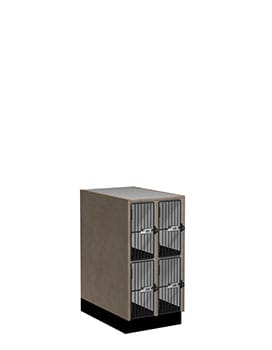

STYLE: Individual Laminated Doors
FAMILY OPTION: 1 Full Height Laminated Door
COMPARTMENTS: 4 Equal (8″ W x 14-1/2″ H)
WIDTH: 18-1/4″
HEIGHT: 36-5/8″
DEPTH: 29″ | 39″
29″ DEEP: Clarinet, Flute, Oboe, Piccolo
39″ DEEP: Clarinet, Flute, Oboe, Piccolo

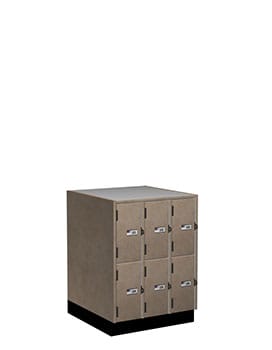

STYLE: Individual Laminated Doors
FAMILY OPTION: 1 Full Height Laminated Door
COMPARTMENTS: 6 Equal (8″ W x 14-1/2″ H)
WIDTH: 27″
HEIGHT: 36-5/8″
DEPTH: 29″ | 39″
29″ DEEP: Clarinet, Flute, Oboe, Piccolo
39″ DEEP: Clarinet, Flute, Oboe, Piccolo
STYLE: Individual Laminated Doors
FAMILY OPTION: 1 Full Height Laminated Door
COMPARTMENTS: 4 Equal (12-3/8″ W x 14-1/2″ H)
WIDTH: 27″
HEIGHT: 36-5/8″
DEPTH: 29″ | 39″
29″ DEEP: Alto Sax, Cornet, Trumpet
39″ DEEP: Alto Clarinet, Bassoon, Bass Clarinet, Tenor Sax, Trombone, Violin, Viola
STYLE: Individual Laminated Doors
COMPARTMENTS: 1 Bottom (25-3/8″ W x 25″ H)
WIDTH: 27″
HEIGHT: 36-5/8″
DEPTH: 29″ | 39″
29″ DEEP: Alto Horn, French Horn, Snare Drum
39″ DEEP: Baritone, Euphonium, Mellophone
STYLE: Open Compartments
COMPARTMENTS: 15 Equal (8″ W x 14-1/2″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Clarinet, Flute, Oboe, Piccolo
39″ DEEP: Clarinet, Flute, Oboe, Piccolo
STYLE: Open Compartments
COMPARTMENTS: 10 Equal (12-3/8″ W x 14-1/2″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Alto Saxophone, Cornet, Trumpet
39″ DEEP: Alto Clarinet, Bassoon, Bass Clarinet, Tenor Saxophone, Trombone, Violin, Viola
STYLE: Open Compartments
COMPARTMENTS: 5 Equal (8″ W x 14-1/2″ H) and 5 Equal (12-3/8″ W x 14-1/2″ H)
WIDTH: 23″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Clarinet, Flute, Oboe, Piccolo, Alto Sax, Cornet, Trumpet
39″ DEEP: Clarinet, Flute, Oboe, Piccolo, Alto Clarinet, Bassoon, Bass Clarinet, Tenor Sax, Trombone, Violin, Viola
STYLE: Open Compartments
COMPARTMENTS: 9 Equal (8″ W x 14-1/2″ H) and 1 Bottom (25-3/8″ W x 25″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Clarinet, Flute, Oboe, Piccolo, Alto Horn, French Horn, Snare Drum
39″ DEEP: Clarinet, Flute, Oboe, Piccolo, Baritone, Euphonium, Mellophone
STYLE: Open Compartments
COMPARTMENTS: 6 Equal (12-3/8″ W x 14-1/2″ H) and 1 Bottom (25-3/8″ W x 25″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Alto Sax, Cornet, Trumpet, Alto Horn, French Horn, Snare Drum
39″ DEEP: Alto Clarinet, Bassoon, Bass Clarinet, Tenor Sax, Trombone, Violin, Viola, Baritone, Euphonium
STYLE: Open Compartments
COMPARTMENTS: 5 Equal (12-3/8″ W x 14-1/2″ H)
WIDTH: 14″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Alto Sax, Cornet, Trumpet
39″ DEEP: Alto Clarinet, Bassoon, Bass Clarinet, Tenor Sax, Trombone, Violin, Viola
STYLE: Open Compartments
COMPARTMENTS: 3 Equal (25-3/8″ W x 25″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: French Horn, Alto Horn, Snare Drum
39″ DEEP: Baritone, Euphonium, Mellophone
STYLE: Open Compartments
COMPARTMENTS: 3 Equal (46-1/2″ W x 25″ H)
WIDTH: 48″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Baritone Sax, Bass Clarinet, Bassoon, Field Drums, Snare Drum
39″ DEEP: Baritone Sax, Bass Clarinet, Bassoon, Field Drums, Snare Drum
STYLE: Open Compartments
COMPARTMENTS: 2 Equal (25-3/8″ W x 38-1/2″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Bass/Field/Parade Drums, Snare Drum
39″ DEEP: Bass/Field/Parade Drums, Snare Drum
STYLE: Open Compartments
COMPARTMENTS: 2 Equal (46-1/2″ W x 38-1/2″ H)
WIDTH: 48″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Bass/Field/Parade Drums, Snare Drum, Tri-Toms, Quads, Tuba, Sousaphone
39″ DEEP: Bass/Field/Parade Drums, Snare Drum, Tri-Toms, Quads, Tuba, Sousaphone
STYLE: Open Compartments
COMPARTMENTS: Full Height (25-3/8″ W x 78-7/8″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: String Bass, Contra Bass Clarinet, Bass Drums
39″ DEEP: String Bass, Contra Bass Clarinet, Bass Drums
STYLE: Open Compartments
COMPARTMENTS: 1 Top (25-3/8″ W x 10″ H) and 1 Bottom (25-3/8″ W x 68″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Cello, Guitar, Snare Drum, Field Drums
39″ DEEP: Cello, Guitar, Snare Drum, Field Drums
STYLE: Open Compartments
COMPARTMENTS: 6 Equal (8″ W x 38-1/2″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Acoustic Guitar
39″ DEEP: Acoustic Guitar
STYLE: Open Compartments

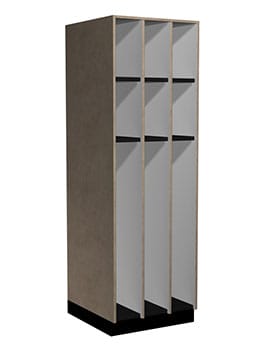

COMPARTMENTS: 6 Equal (8″ W x 38-1/2″ H) and 3 Equal (8″ W x 46-1/2″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Clarinet, Flute, Oboe, Piccolo, Acoustic Guitar
39″ DEEP: Clarinet, Flute, Oboe, Piccolo, Acoustic Guitar

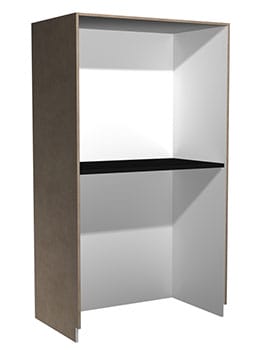

STYLE: Open Compartments
COMPARTMENTS: 2 Equal (58-1/2″ W x 38-1/2″ H) – Open at the bottom for large wheel-in instrument storage
WIDTH: 60″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Timpani, Chimes, Xylophone, Marimbas, Small Vibes
39″ DEEP: Timpani, Chimes, Xylophone, Marimbas, Small Vibes
STYLE: Open Compartments
COMPARTMENTS: 1 Top (58-1/2″ W x 10″ H) and 1 Bottom (58-1/2″ W x 73″ H) – Open at the bottom for large wheel-in instrument storage
WIDTH: 60″
HEIGHT: 84-1/2″
DEPTH: 29″ | 39″
29″ DEEP: Timpani, Chimes, Xylophone, Marimbas, Small Vibes
39″ DEEP: Timpani, Chimes, Xylophone, Marimbas, Small Vibes
STYLE: Open Compartments and 1 Closet Rod Included
COMPARTMENTS: 1 Top (25-3/8″ W x 10″ H) and 1 Bottom (25-3/8″ W x 68″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 23″ | 29″
23″ DEEP: Uniforms, Robes, Uniform Accessories
29″ DEEP: Uniforms, Robes, Uniform Accessories
STYLE: Open Compartments and 1 Closet Rod Included
COMPARTMENTS: 1 Top (46-1/2″ W x 10″ H) and 1 Bottom (46-1/2″ W x 68″ H)
WIDTH: 48″
HEIGHT: 84-1/2″
DEPTH: 23″ | 29″
23″ DEEP: Uniforms, Robes, Uniform Accessories
29″ DEEP: Uniforms, Robes, Uniform Accessories

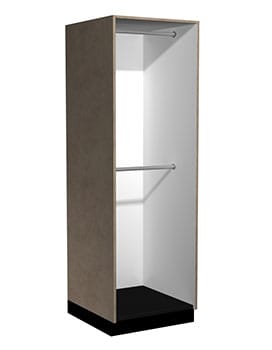

STYLE: Open Compartments and 2 Closet Rod Included
COMPARTMENTS: 2 Equal (25-3/8″ W x 38-1/2″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 23″ | 29″
23″ DEEP: Uniforms, Robes, Uniform Accessories
29″ DEEP: Uniforms, Robes, Uniform Accessories
STYLE: Open Compartments and 2 Closet Rod Included
COMPARTMENTS: 2 Equal (46-1/2″ W x 38-1/2″ H)
WIDTH: 48″
HEIGHT: 84-1/2″
DEPTH: 23″ | 29″
23″ DEEP: Uniforms, Robes, Uniform Accessories
29″ DEEP: Uniforms, Robes, Uniform Accessories

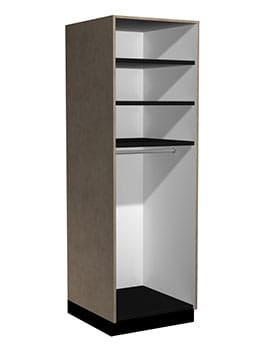

STYLE: Open Compartments and 1 Closet Rod Included
COMPARTMENTS: 3 Equal (25-3/8″ W x 10″ H) and 1 Bottom (25-3/8″ W x 76″ H)
WIDTH: 27″
HEIGHT: 84-1/2″
DEPTH: 23″ | 29″
23″ DEEP: Uniforms, Robes, Uniform Accessories
29″ DEEP: Uniforms, Robes, Uniform Accessories
STYLE: Open Compartments and 1 Closet Rod Included
COMPARTMENTS: 3 Equal (46-1/2″ W x 10″ H) and 1 Bottom (46-1/2″ W x 76″ H)
WIDTH: 48″
HEIGHT: 84-1/2″
DEPTH: 23″ | 29″
23″ DEEP: Uniforms, Robes, Uniform Accessories
29″ DEEP: Uniforms, Robes, Uniform Accessories
STYLE: Open Compartments

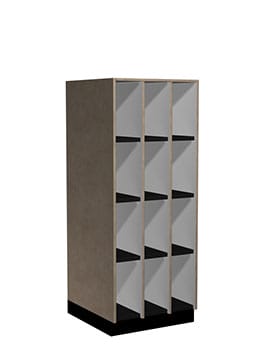

COMPARTMENTS: 12 Equal (8″ W x 14-1/2″ H)
WIDTH: 27″
HEIGHT: 68-5/8″
DEPTH: 29″ | 39″
29″ DEEP: Clarinet, Flute, Oboe, Piccolo
39″ DEEP: Clarinet, Flute, Oboe, Piccolo
STYLE: Open Compartments

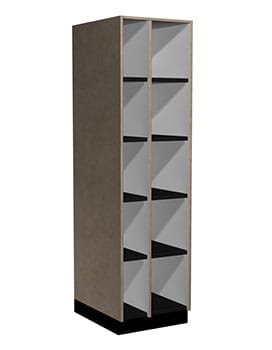

COMPARTMENTS: 8 Equal (12-3/8″ W x 14-1/2″ H)
WIDTH: 27″
HEIGHT: 68-5/8″
DEPTH: 29″ | 39″
29″ DEEP: Alto Sax, Cornet, Trumpet
39″ DEEP: Alto Clarinet, Bassoon, Bass Clarinet, Tenor Sax, Trombone, Violin, Viola
STYLE: Open Compartments

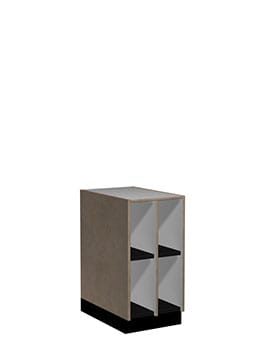

COMPARTMENTS: 4 Equal (8″ W x 14-1/2″ H)
WIDTH: 18-1/4″
HEIGHT: 36-5/8″
DEPTH: 29″ | 39″
29″ DEEP: Clarinet, Flute, Oboe, Piccolo
39″ DEEP: Clarinet, Flute, Oboe, Piccolo

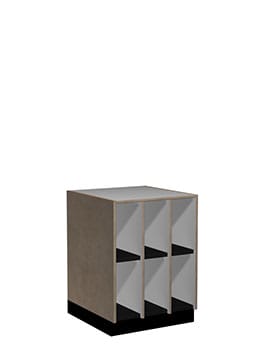

STYLE: Open Compartments
COMPARTMENTS: 6 Equal (8″ W x 14-1/2″ H)
WIDTH: 27″
HEIGHT: 36-5/8″
DEPTH: 29″ | 39″
29″ DEEP: Clarinet, Flute, Oboe, Piccolo
39″ DEEP: Clarinet, Flute, Oboe, Piccolo
STYLE: Open Compartments
COMPARTMENTS: 4 Equal (12-3/8″ W x 14-1/2″ H)
WIDTH: 27″
HEIGHT: 36-5/8″
DEPTH: 29″ | 39″
29″ DEEP: Alto Sax, Cornet, Trumpet
39″ DEEP: Alto Clarinet, Bassoon, Bass Clarinet, Tenor Sax, Trombone, Violin, Viola
STYLE: Open Compartments

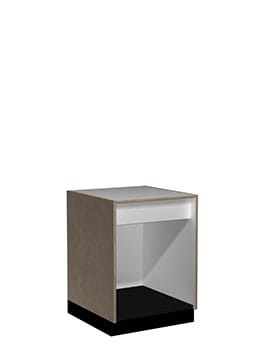

COMPARTMENTS: 1 Bottom (25-3/8″ W x 25″ H)
WIDTH: 27″
HEIGHT: 36-5/8″
DEPTH: 29″ | 39″
29″ DEEP: Alto Horn, French Horn, Snare Drum
39″ DEEP: Baritone, Euphonium, Mellophone
Through a dialogue with architects and extensive product research, we have established music instrument storage specifications which provide optimum durability at the most affordable cost.
The recommended specifications and details available below contain the results of over 50 years of industry experience and product development.
